Strategic Air Command Museum

Strategic Air Command Museum

Project Details

Ashland, Nebraska
207,000 square feet
Wall System: Masonry
End Use: Aviation, Community

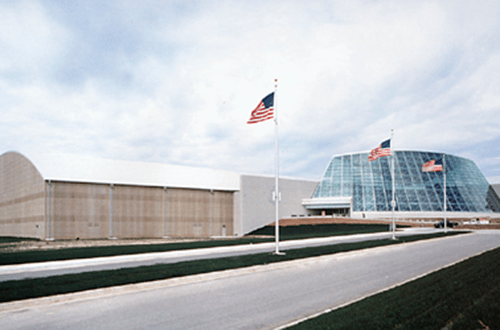

Designed to emulate the curved roof military hangars of the 1940s, the Strategic Air Command Museum encompasses 207,000 sq. ft. of aircraft restoration and exhibit space.

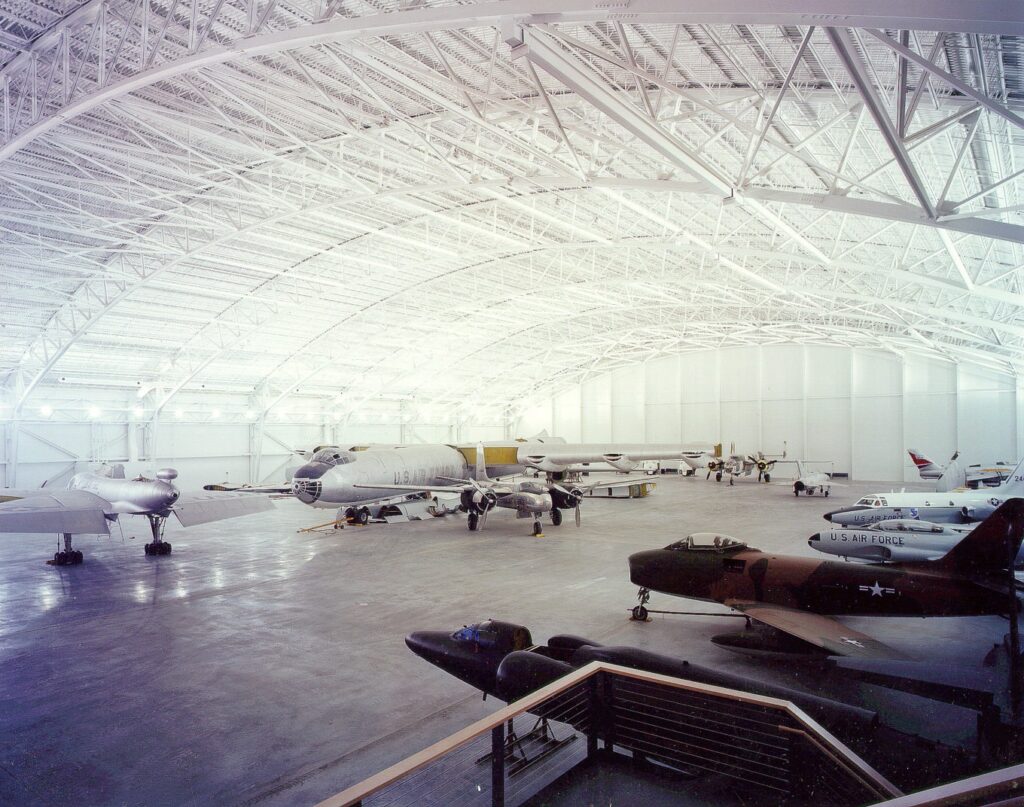

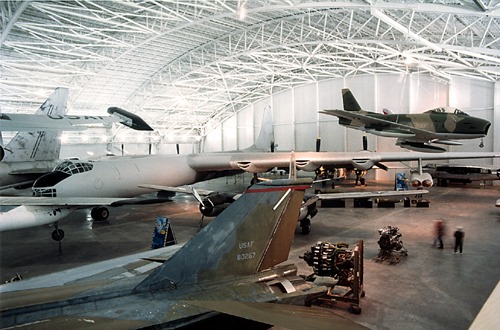

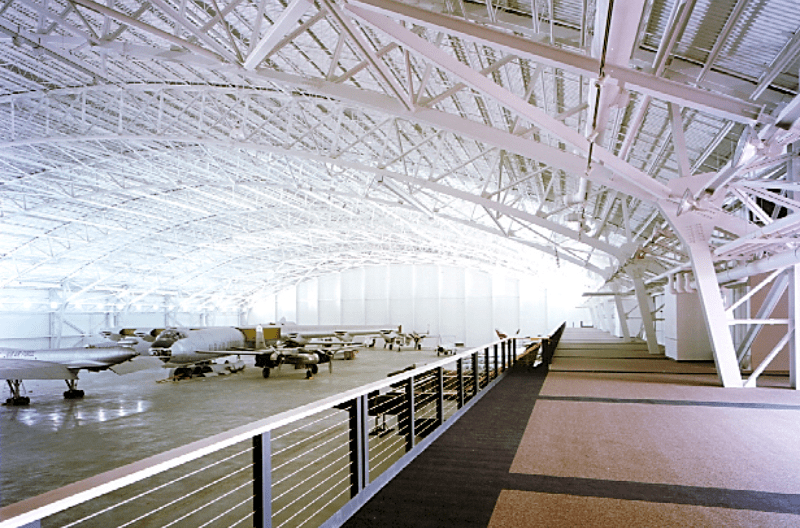

The facility features two 270′ arched, clearspan hangars which are connected by a glass-enclosed atrium area. At the eave, the buildings provide for a 30′ clear height, with clearances reaching 60′ at the top of the arches. Each building is equipped with 150′ wide by 35′ tall bi-parting hangar doors in the rear end walls. Twenty-foot high tail doors are located above the hangar doors to accommodate larger aircraft.

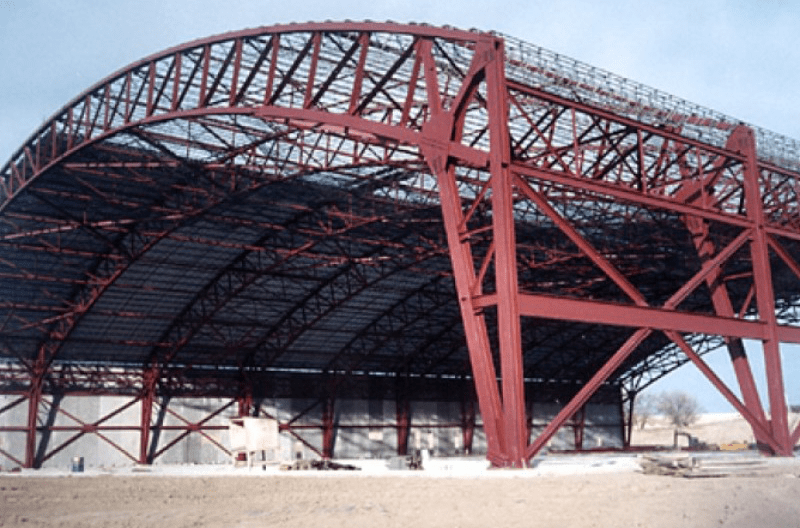

The conventional structural steel framing system was designed and supplied by Butler Heavy Structures. Truss purlins span between the arched frames to support the roof. Other products used on the project include a modified standing seam metal roof with an acoustical liner panel for noise reduction and metal wall panels on the end walls with hangar doors.
