Keystone Aviation Hangar

Project Details

Waterbury-Oxford Airport, Connecticut
62,500 square feet

Structural System: Butler Heavy Structures
Roof System: MR-24® roof system
Wall System: Shadowall wall system
End Use: Aviation

This 62,500-square-foot hangar constructed for Keystone Aviation Services, Inc. is the largest of eight hangars constructed by Pacesetter Construction Corp. Pacesetter worked with Butler Heavy Structures to provide an alternative profile to the traditional side-by-side gable framed buildings used in the past. The new hangar utilizes a reverse-frame design that slopes from the front to the back of the building.
Butler Heavy Structures developed a hybrid structural solution to accommodate the reverse-frame profile. A 6'-deep, three-plate super girder spans the 500'-building width. It is supported on columns placed between three, 130'-wide sliding hangar doors.

Flat-bottom, factory assembled trusses bear on the girder at the high side of the building and on three-plate, fixed base columns at the low side. At the back of the 32'-tall hangar, a 30' wide by 400' long two-story office was constructed that provides up to 24,000-square-feet of office space. A standing seam metal roof system was used on the hangar, with a painted architectural roof panel on the office roof. Both buildings are clad with metal panels.

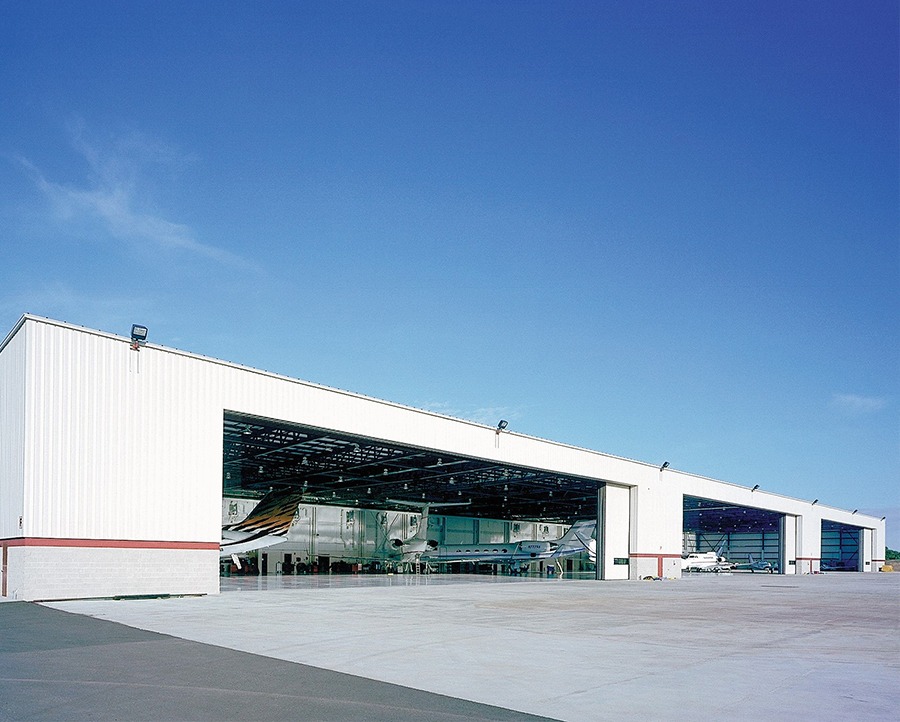

Butler Heavy Structures-Keystone Aviation Hangar exterior with garage doors open

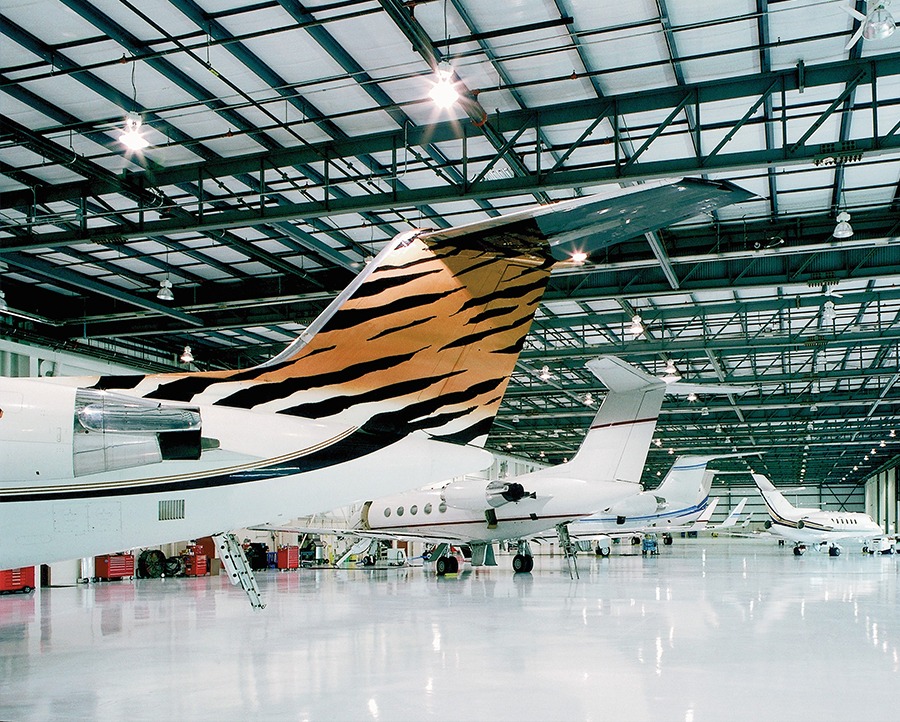

Butler Heavy Structures-Keystone Aviation Hangar interior
Butler Heavy Structures-Keystone Aviation Hangar front exterior
