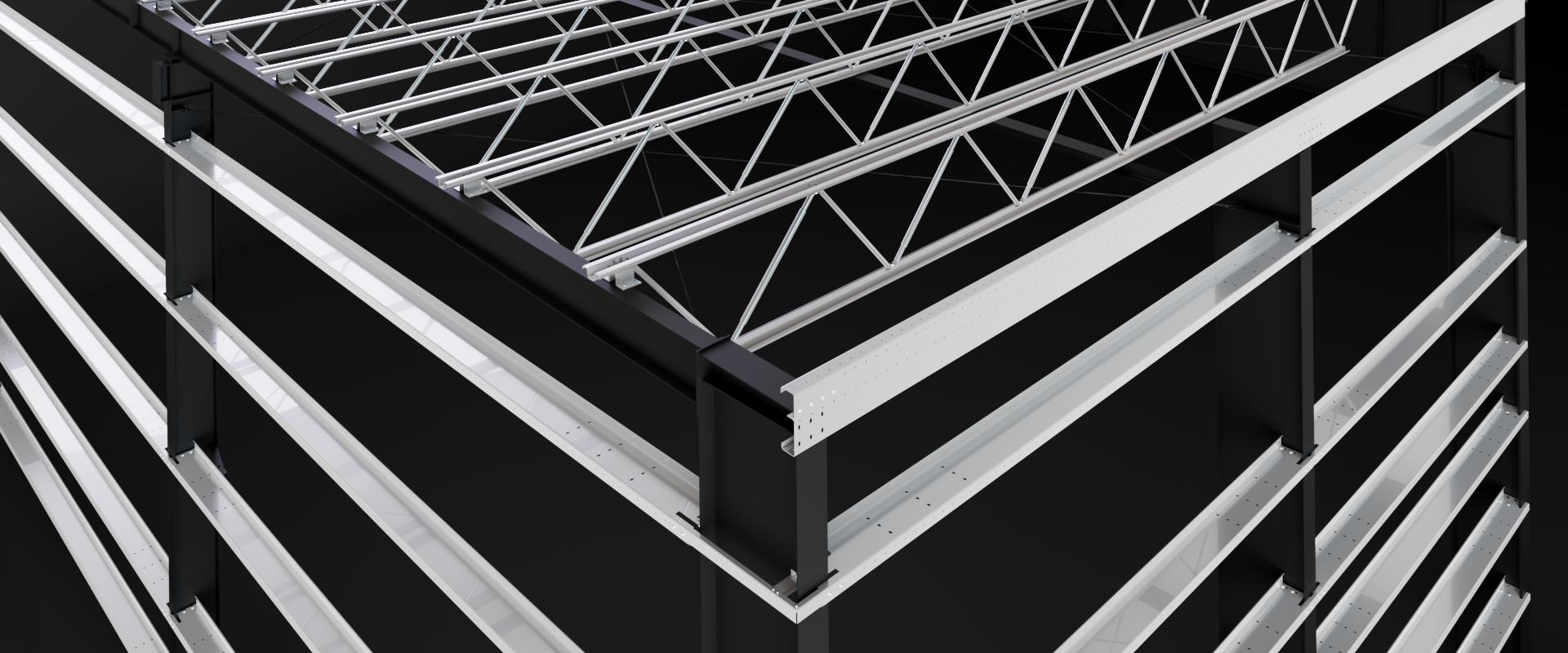

Close up of Butler secondary structural system with integrated purlins and truss members, supporting roof loads and enabling coordinated system performance.

Secondary Structures

Create strength across the entire building system and support efficient installation.

Product Resources
Secondary Structures Product Sheet PDF (1.2MB)
Truss Purlins XT PDF (1.5MB)
Butler Color Chart PDF (1.8MB)
Features
Images
Specs
Featured Projects

Structural Precision

Engineered for alignment. Streamlined for installation.

Secondary framing is what brings order and confidence to the building as it takes shape. It supports the structure quietly but decisively, helping walls and roofs come together with clarity and consistency. By opening interior space and simplifying construction, it allows the building to work harder without feeling constrained. Precision and coordination across the system reduce uncertainty during installation and reinforce stability over time. Integrated as part of a complete Butler building approach, secondary framing helps the entire structure perform as one delivering strength, efficiency and reliability that last well beyond completion.

Features

Factory punched connections improve fit, speed installation and reduce field variability.

Factory-punched accuracy: Pre-punched connections improve fit, speeds installation and reduce errors.

Designed to integrate with Butler® roof and wall systems for coordinated system performance.

System-wide integration: Designed to align with Butler roof and wall systems for unified performance.

Roll formed top and bottom chords use bolted connections to eliminate weld variability.

Roll formed top and bottom chords use bolted connections to eliminate weld variability.

Truss Purlin XT supports spans from 12 - 60′ with 30", 34" and 40" depths for efficient structural performance.

Supports spans from 12 to 60 feet with 30", 34" and 40" depths for efficient structural performance.

Product Options

Product Options

Truss PurlinXT

Engineered for spans up to 60', Truss PurlinXT features a factory-assembled, pre-punched design that improves erection speed and accuracy. Its lighter weight reduces freight cost and provides long-term corrosion resistance.

  • Roll-formed top and bottom chords are bolted, eliminating welds for consistent fabrication.
  • Its long-span capability supports spans from 12 – 60' with depths of 30", 34", and 40" for optimized performance.
  • G30 galvanized finish, factory-punched holes and bridging indicators streamline installation.
  • Up to 36% less weight than conventional bar joists across typical bay conditions.

Download Product Sheet

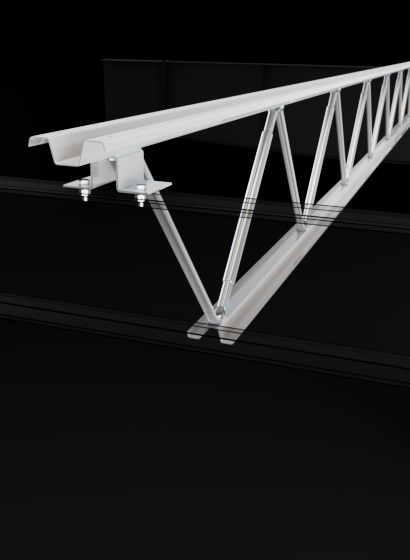

Butler Truss PurlinXT system showing an open-web steel truss with integrated top flange and diagonal web members, engineered to deliver long-span roof support, structural efficiency, and coordinated performance within a complete building system.
Truss PurlinXT™ Engineered for spans up to 60 feet and designed to improve erection speed and accuracy.

Product Options

Girts

Girts deliver reliable alignment and structural support for exterior wall systems. Their C-shaped or Z-shaped profiles, factory-punched connections and optimized spacing create a consistent framework for efficient installation and long-term durability.

  • Cold-formed G30 steel with clear acrylic coating provides consistent material performance.
  • Available in 7", 8 1/2", 10", and 11 1 1/2" depths to support varied wall conditions.
  • Pre-punched holes support accurate panel placement and frame connection.
  • Compact, nestable design improves shipping and storage efficiency.

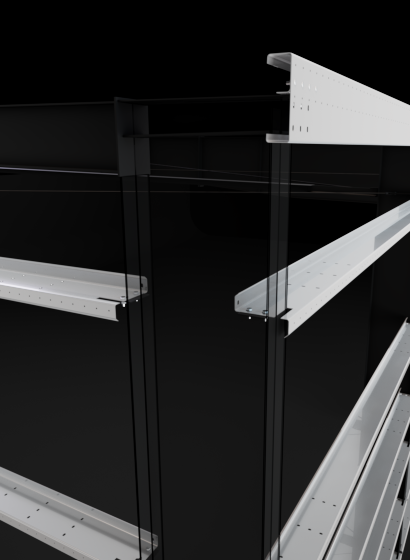

Butler steel girts shown in a wall assembly, featuring horizontal structural members attached to vertical framing, engineered to support wall panels, maintain alignment, and integrate seamlessly within a coordinated building system.
Girts Structural support for exterior wall systems with C-shaped or Z-shaped profiles.

Product Options

Purlins

Purlins provide reliable support for roof systems with C-shaped and Z-shaped profiles that optimize strength and alignment. Factory-punched accuracy improves installation speed, while consistent geometry strengthens long-term roof performance.

  • Formed from G30 galvanized steel with clear acrylic coating for material consistency.
  • Standard Z- and C-sections includes Z-sections in 7", 8 1/2", 10", and 11 1/2" depths for lapped continuity.
  • Pre-punched for alignment with MR24 and Butlerib roof systems.
  • Nestable geometry supports compact freight and efficient jobsite staging.

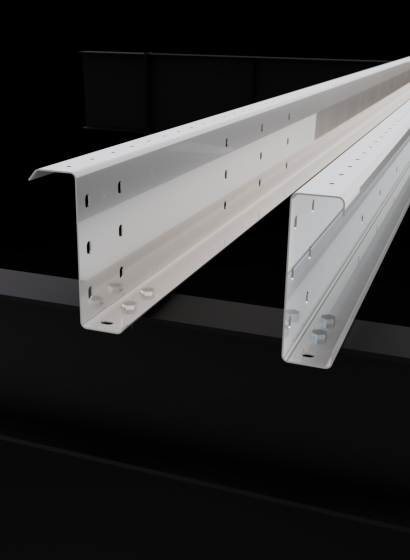

Butler roof purlins shown as precision-formed steel members with pre-punched connections, engineered to support roof loads, ensure alignment, and integrate seamlessly within a coordinated building system for efficient installation and long-term performance.
Purlins Reliable support for roof systems, with C-shaped and Z-shaped profiles.

Product Specs

Download Color Chart

Member Types
C-shaped girts, Z-shaped girts, C-shaped purlins, Z-shaped purlins, Truss PurlinXT
Geometry
Optimized profiles for strength and alignment
Factory Punching
Pre-punched holes improve fit and installation efficiency
Bay Spacing
Truss PurlinXT supports spacing up to 60 feet
System Compatibility
Integrates with Butler roof and wall systems
Performance
Engineered for load distribution, alignment and consistent support
Warranty
Backed by Butler system warranty
